Plan Number: 15-025-01

Plan Type: 1.5 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets) $1,795.00
PDF's $1,295.00
CAD Drawings $2,695.00

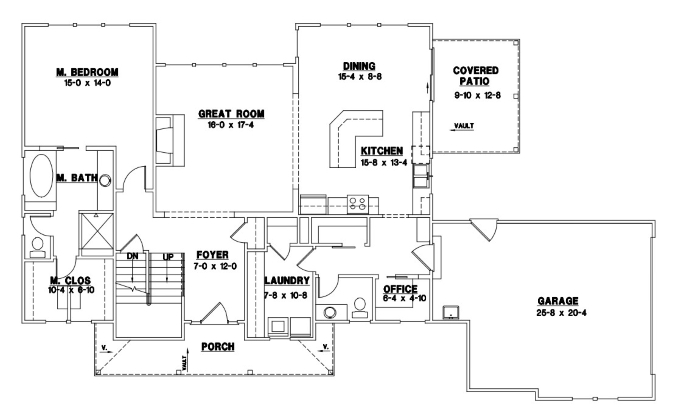

FIRST FLOOR: Square Feet: 1637

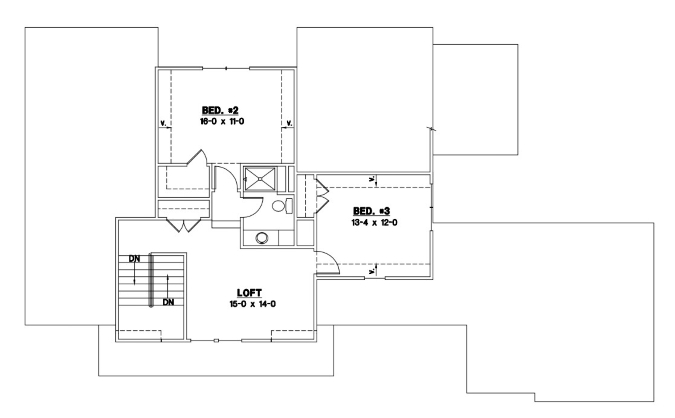

SECOND FLOOR: Square Feet: 746


Plan Details
Square Feet:2383
Height:27ft. 11in.
Width:74ft.
Depth:44ft.
Main Roof Pitch:8/12
Basement Wall Height:8ft.
Master Bedroom Location:First Floor
Laundry Location:First Floor
Foyer Height:One Story
Bedrooms:3
Full Bathrooms:2
Half Bathrooms:1
Stairs:2
Materials
Foundation:FULL
Exterior Walls:2 x 4
Front Exterior Finish:LAP
Side and Rear Exterior Finish:LAP
Roof Framing:LUMBER
Windows:SINGLE HUNG
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		9ft.
 		7ft.
 		12ft.
DINING ROOM
 		9ft.
 		15ft. 4in.
 		8ft. 8in.
KITCHEN
 		9ft.
 		15ft. 8in.
 		13ft. 4in.
GREAT ROOM
 		10ft.
 		16ft.
 		17ft. 4in.
OFFICE
 		9ft.
 		6ft. 4in.
 		4ft. 10in.
LAUNDRY ROOM
 		9ft.
 		7ft. 8in.
 		10ft. 8in.
MASTER BEDROOM
 		9ft.
 		15ft.
 		14ft.
MASTER CLOSET
 		9ft.
 		10ft. 4in.
 		6ft. 10in.
BEDROOM 2
 		9ft.
 		16ft.
 		11ft.
BEDROOM 3
 		9ft.
 		13ft. 4in.
 		12ft.
LOFT
 		8ft.
 		15ft.
 		14ft.
COVERED PATIO
 		10ft. 1in.
 		9ft. 10in.
 		12ft. 8in.
GARAGE
 		10ft. 1in.
 		25ft. 8in.
 		20ft. 4in.
Garage SIDE ENTRY Square Feet: 502
 		Stalls: 2


This house plan was designed based on the building codes applicable in the year of its design.
