Plan Number: 15-033-01

Plan Type: 1.5 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets) $2,095.00
PDF's $1,595.00
CAD Drawings $2,995.00

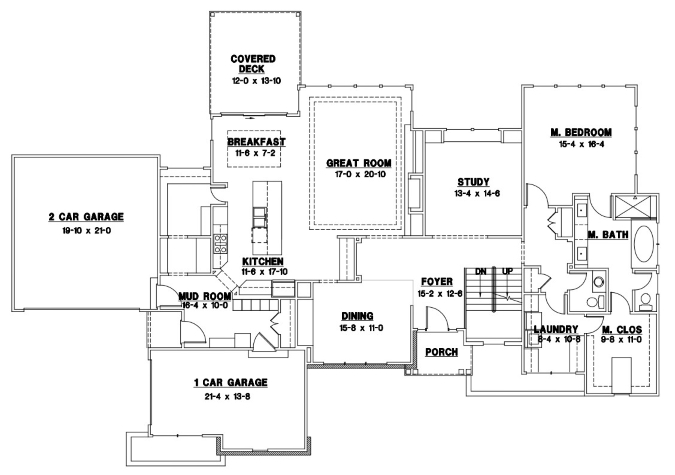

FIRST FLOOR: Square Feet: 2359

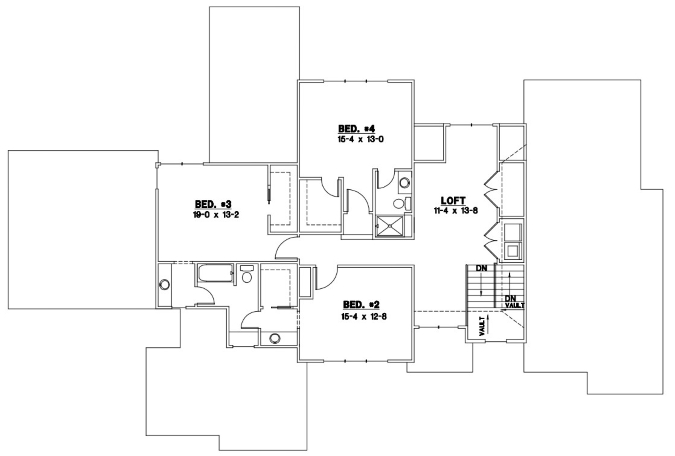

SECOND FLOOR: Square Feet: 1379

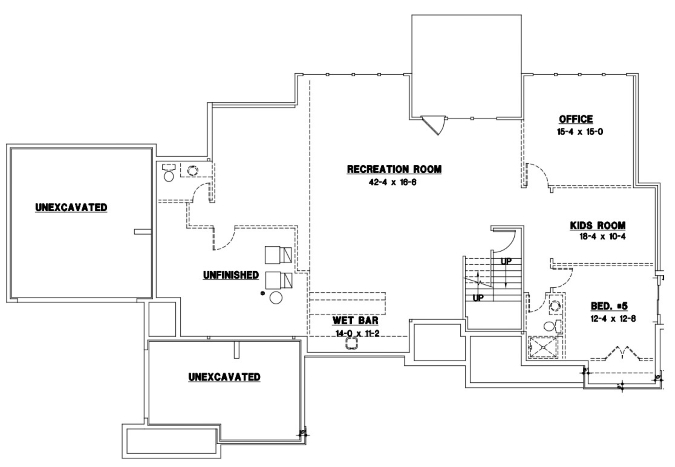

LOWER FLOOR: Square Feet: 104



Plan Details
Square Feet:3842
Height:27ft. 3in.
Width:89ft. 6in.
Depth:62ft. 8in.
Main Roof Pitch:6/12
Basement Wall Height:9ft.
Master Bedroom Location:First Floor
Laundry Location:First Floor
Foyer Height:One Story
Bedrooms:4
Full Bathrooms:3
Half Bathrooms:1
Stairs:2
Materials
Foundation:WALK OUT
Exterior Walls:2 x 4
Front Exterior Finish:STONE/LAP
Side and Rear Exterior Finish:STUCCO
Roof Framing:LUMBER
Windows:CASEMENT
Shingles:COMPOSITION

Room Height Width Depth
FOYER
10ft.
15ft. 2in.
12ft. 6in.
MUD ROOM
10ft.
16ft. 4in.
10ft.
KITCHEN
10ft.
11ft. 6in.
17ft. 10in.
BREAKFAST
11ft.
11ft. 6in.
7ft. 2in.
DINING ROOM
10ft.
15ft. 8in.
11ft.
GREAT ROOM
11ft.
17ft.
20ft. 10in.
STUDY
10ft.
13ft. 4in.
14ft. 6in.
LAUNDRY ROOM
10ft.
8ft. 4in.
10ft. 8in.
MASTER BEDROOM
10ft.
15ft. 4in.
16ft. 4in.
MASTER CLOSET
10ft.
9ft. 8in.
11ft.
BEDROOM 2
8ft.
15ft. 4in.
12ft. 8in.
BEDROOM 3
8ft.
19ft.
13ft. 2in.
BEDROOM 4
8ft.
15ft. 4in.
13ft.
BEDROOM 5
9ft.
12ft. 4in.
12ft. 8in.
LOFT
8ft.
11ft. 4in.
13ft. 8in.
PLAY ROOM
9ft.
18ft. 4in.
10ft. 4in.
RECREATION ROOM
9ft.
42ft. 4in.
16ft. 6in.
WET BAR
9ft.
14ft.
11ft. 2in.
OFFICE
9ft.
15ft. 4in.
15ft.
COVERED DECK
11ft.
12ft.
13ft. 10in.
1 CAR GARAGE
11ft. 3in.
21ft. 4in.
13ft. 8in.
2 CAR GARAGE
11ft. 3in.
19ft. 10in.
21ft.
Garage SIDE ENTRY Square Feet: 289
Stalls: 1
Garage FRONT ENTRY Square Feet: 437
Stalls: 2


This house plan was designed based on the building codes applicable in the year of its design.
