Plan Number: 15-036-01

Plan Type: 2 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets) $2,295.00
PDF's $1,795.00
CAD Drawings $3,495.00

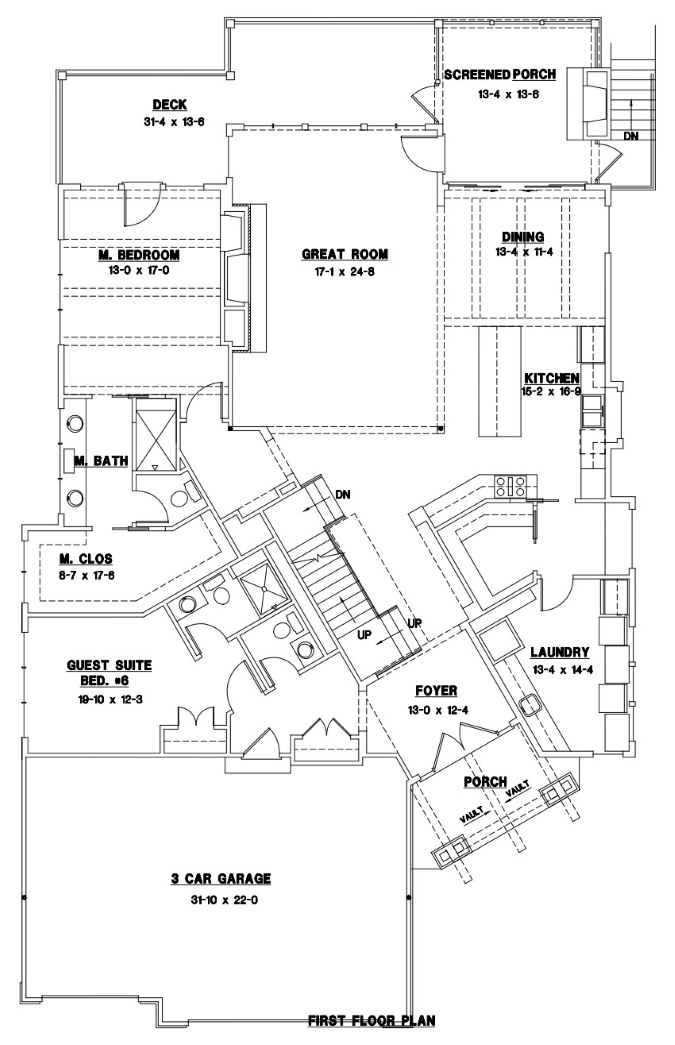

FIRST FLOOR: Square Feet: 2385

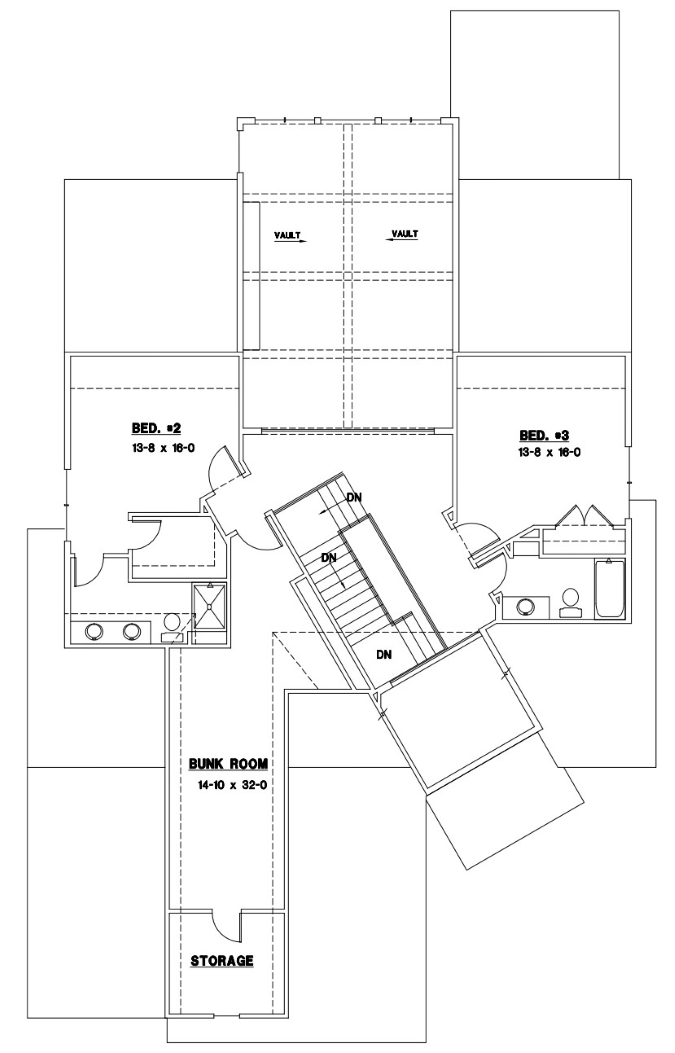

SECOND FLOOR: Square Feet: 1196

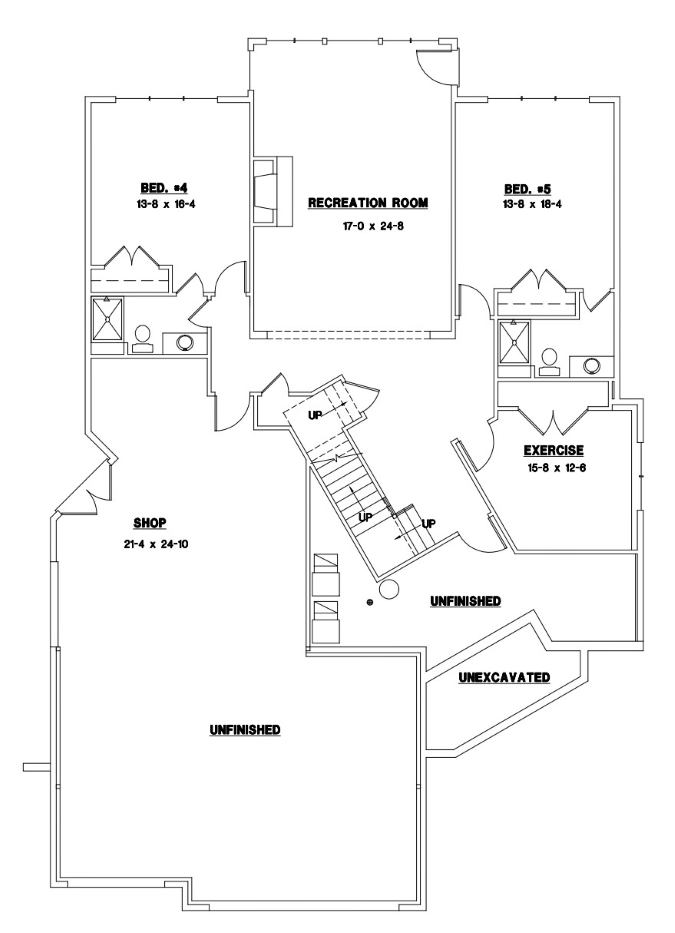

LOWER FLOOR: Square Feet: 1628


Plan Details
Square Feet:5209
Height:30ft. 2in.
Width:51ft.
Depth:83ft. 8in.
Main Roof Pitch:8/12
Basement Wall Height:10ft.
Master Bedroom Location:First Floor
Laundry Location:First Floor
Foyer Height:Two Story
Bedrooms:6
Full Bathrooms:6
Half Bathrooms:1
Stairs:2
Materials
Foundation:WALK OUT
Exterior Walls:2 x 6
Front Exterior Finish:LAP/STONE
Side and Rear Exterior Finish:LAP
Roof Framing:LUMBER
Windows:CASEMENT
Shingles:CONCRETE

Room Height Width Depth
FOYER
 		20ft.
 		13ft.
 		12ft. 4in.
DINING ROOM
 		10ft.
 		13ft. 4in.
 		11ft. 4in.
KITCHEN
 		10ft.
 		15ft. 2in.
 		16ft. 9in.
GREAT ROOM
 		17ft. 1in.
 		24ft. 8in.
LAUNDRY ROOM
 		10ft.
 		13ft. 4in.
 		14ft. 4in.
MASTER BEDROOM
 		10ft.
 		13ft.
 		17ft.
MASTER CLOSET
 		10ft.
 		8ft. 7in.
 		17ft. 6in.
BEDROOM 2
 		10ft.
 		13ft. 8in.
 		16ft.
BEDROOM 3
 		10ft.
 		13ft. 8in.
 		16ft.
BEDROOM 4
 		10ft.
 		13ft. 8in.
 		16ft. 4in.
BEDROOM 5
 		10ft.
 		13ft. 8in.
 		18ft. 4in.
BEDROOM 6
 		10ft.
 		19ft. 10in.
 		12ft. 3in.
BONUS ROOM
 		9ft.
 		14ft. 10in.
 		32ft.
RECREATION ROOM
 		10ft.
 		17ft.
 		24ft. 8in.
EXERCISE ROOM
 		10ft.
 		15ft. 8in.
 		12ft. 6in.
SHOP
 		10ft.
 		21ft. 4in.
 		24ft. 10in.
SCREENED PORCH
 		10ft.
 		13ft. 4in.
 		13ft. 6in.
DECK
 		10ft.
 		31ft. 4in.
 		13ft. 6in.
GARAGE
 		11ft. 3in.
 		31ft. 10in.
 		22ft.
Garage FRONT ENTRY Square Feet: 694
 		Stalls: 3


This house plan was designed based on the building codes applicable in the year of its design.
