Plan Number: 17-001-02

Plan Type: RANCH HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets) $1,695.00
PDF's $1,195.00
CAD Drawings $2,495.00

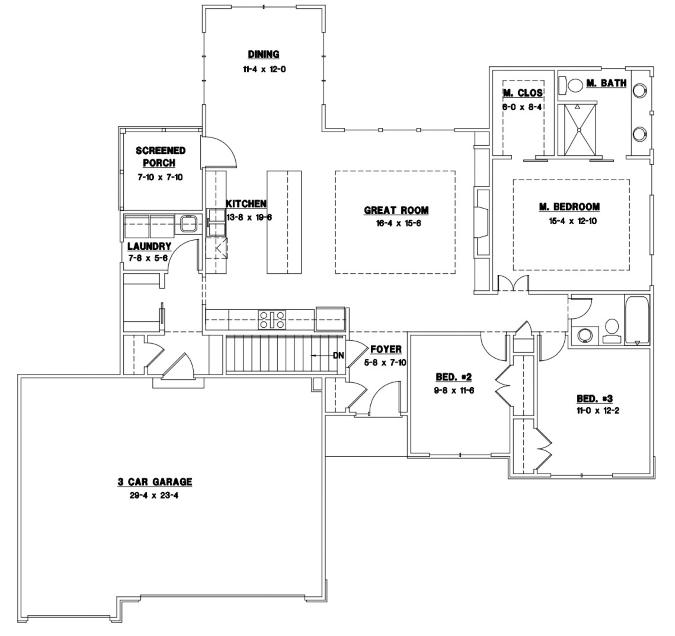

FIRST FLOOR: Square Feet: 1636


Plan Details
Square Feet:1636
Height:21ft. 4in.
Width:62ft.
Depth:54ft.
Main Roof Pitch:8/12
Basement Wall Height:9ft.
Master Bedroom Location:First Floor
Laundry Location:First Floor
Foyer Height:One Story
Bedrooms:3
Full Bathrooms:2
Half Bathrooms:0
Stairs:1
Materials
Foundation:WALK OUT
Exterior Walls:2 x 6
Front Exterior Finish:LAP / STONE
Side and Rear Exterior Finish:SMART PANEL
Roof Framing:TRUSS
Windows:SINGLE HUNG
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		9ft.
 		5ft. 8in.
 		7ft. 10in.
DINING ROOM
 		10ft.
 		11ft. 4in.
 		12ft.
KITCHEN
 		10ft.
 		13ft. 8in.
 		19ft. 6in.
GREAT ROOM
 		11ft.
 		16ft. 4in.
 		15ft. 6in.
LAUNDRY ROOM
 		10ft.
 		7ft. 8in.
 		5ft. 6in.
MASTER BEDROOM
 		11ft.
 		15ft. 4in.
 		12ft. 10in.
MASTER CLOSET
 		10ft.
 		6ft.
 		8ft. 4in.
BEDROOM 2
 		9ft.
 		9ft. 8in.
 		11ft. 6in.
BEDROOM 3
 		9ft.
 		11ft.
 		12ft. 2in.
SCREENED PORCH
 		10ft.
 		7ft. 10in.
 		7ft. 10in.
GARAGE
 		10ft. 1in.
 		29ft. 4in.
 		23ft. 4in.
Garage FRONT ENTRY Square Feet: 677
 		Stalls: 3


This house plan was designed based on the building codes applicable in the year of its design.
