Plan Number: 15-034-01

Plan Type: 1.5 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets) $2,095.00
PDF's $1,595.00
CAD Drawings $2,995.00

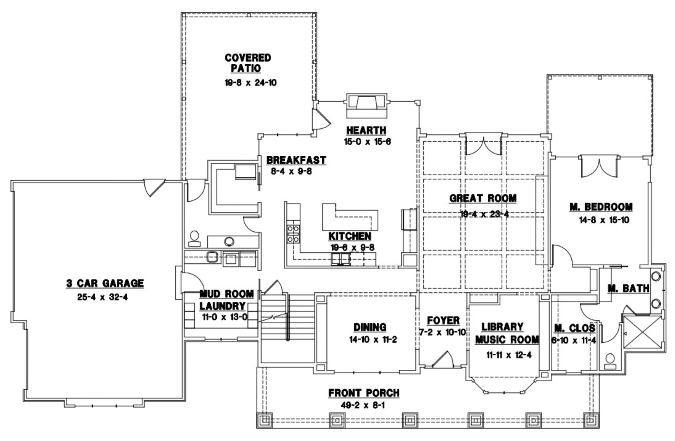

FIRST FLOOR: Square Feet: 2475

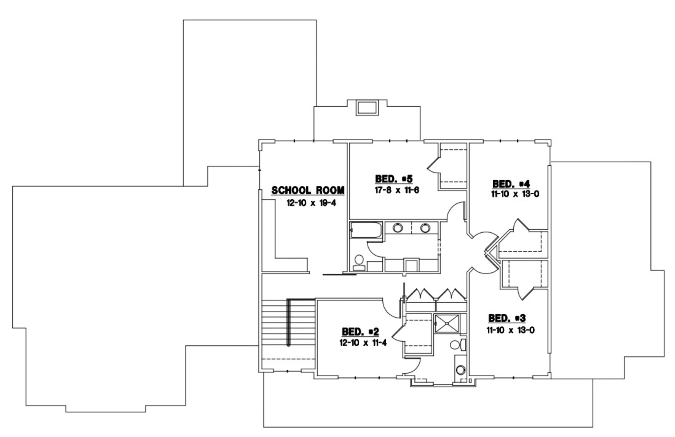

SECOND FLOOR: Square Feet: 1493


Plan Details
Square Feet:3968
Height:34ft. 6in.
Width:98ft.
Depth:62ft.
Main Roof Pitch:8/12
Master Bedroom Location:First Floor
Laundry Location:First Floor
Foyer Height:One Story
Bedrooms:5
Full Bathrooms:3
Half Bathrooms:1
Stairs:2
Materials
Foundation:FULL
Exterior Walls:2 x 6
Front Exterior Finish:LAP/STONE
Side and Rear Exterior Finish:LAP
Roof Framing:LUMBER
Windows:SINGLE HUNG
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		10ft.
 		7ft. 2in.
 		10ft. 10in.
DINING ROOM
 		10ft.
 		14ft. 10in.
 		11ft. 2in.
KITCHEN
 		10ft.
 		19ft. 6in.
 		9ft. 8in.
BREAKFAST
 		10ft.
 		8ft. 4in.
 		9ft. 8in.
HEARTH
 		10ft.
 		15ft.
 		15ft. 6in.
LAUNDRY ROOM
 		10ft.
 		11ft.
 		13ft.
GREAT ROOM
 		10ft.
 		19ft. 4in.
 		23ft. 4in.
MUSIC ROOM/STUDY
 		10ft.
 		11ft. 11in.
 		12ft. 4in.
COVERED PATIO
 		10ft.
 		19ft. 8in.
 		24ft. 10in.
MASTER BEDROOM
 		10ft.
 		14ft. 8in.
 		15ft. 10in.
MASTER CLOSET
 		10ft.
 		6ft. 10in.
 		11ft. 4in.
BEDROOM 2
 		9ft.
 		12ft. 10in.
 		11ft. 4in.
BEDROOM 4
 		9ft.
 		11ft. 10in.
 		13ft.
BEDROOM 3
 		9ft.
 		11ft. 10in.
 		13ft.
BEDROOM 5
 		9ft.
 		17ft. 8in.
 		11ft. 6in.
STUDY
 		9ft.
 		12ft. 10in.
 		19ft. 4in.
FRONT PORCH
 		10ft.
 		49ft. 2in.
 		8ft. 1in.
GARAGE
 		11ft. 1in.
 		25ft. 4in.
 		32ft. 4in.
Garage SIDE ENTRY Square Feet: 827
 		Stalls: 3


This house plan was designed based on the building codes applicable in the year of its design.
