Plan Number: 09-014-01

Plan Type: REVERSE 1.5 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets) $2,295.00
Extra Sets $50.00
Builder Sales Flyer (example) $150.00
PDF's $2,295.00
CAD Drawings $3,495.00

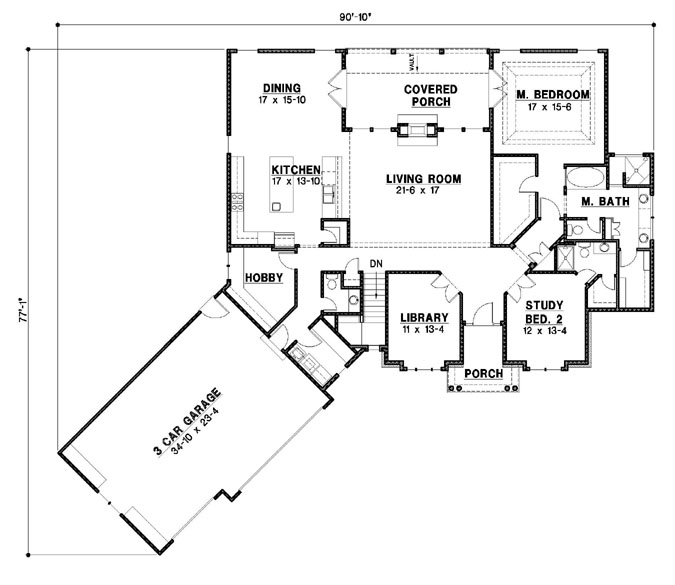

FIRST FLOOR: Square Feet: 2542

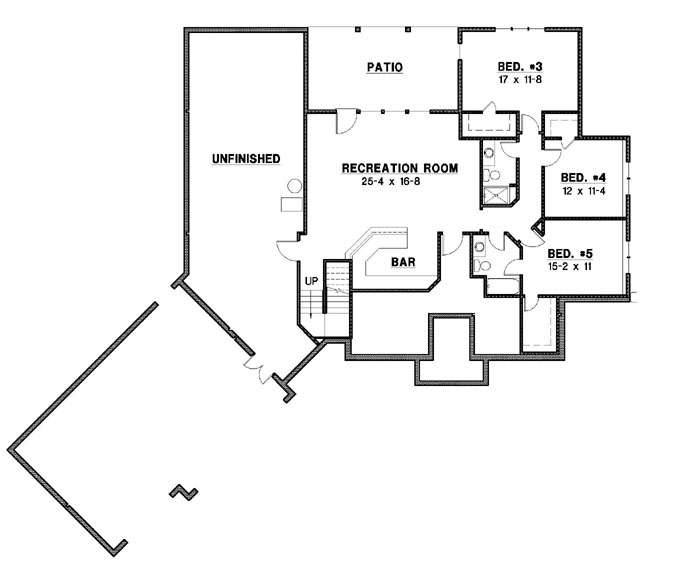

LOWER LEVEL: Square Feet: 1532


Plan Details
Square Feet:4074
Height:26ft. 2in.
Width:90ft. 10in.
Depth:77ft. 1in.
Main Roof Pitch:8/12
Basement Wall Height:9ft.
Master Bedroom Location:FIRST FLOOR
Laundry Location:FIRST FLOOR
Foyer Height:ONE STORY
Bedrooms:5
Full Bathrooms:3
Half Bathrooms:1
Stairs:1
Materials
Foundation:WALK OUT
Exterior Walls:2 x 6
Front Exterior Finish:STUCCO/FAUX STONE
Side and Rear Exterior Finish:STUCCO
Roof Framing:LUMBER
Windows:CASEMENT
Shingles:WOOD

Room Height Width Depth
FOYER
 		12ft.
 		6ft. 4in.
 		11ft. 4in.
DINING ROOM
 		10ft.
 		17ft.
 		15ft. 10in.
KITCHEN
 		10ft.
 		17ft.
 		13ft. 10in.
LIVING ROOM
 		12ft.
 		21ft. 6in.
 		17ft.
LIBRARY
 		10ft.
 		11ft.
 		13ft. 4in.
STUDY/BEDROOM 2
 		10ft.
 		12ft.
 		13ft. 4in.
LAUNDRY ROOM
 		10ft.
 		7ft. 4in.
 		7ft. 8in.
HOBBY
 		10ft.
 		9ft. 10in.
 		10ft.
MASTER BEDROOM
 		12ft.
 		17ft.
 		15ft. 6in.
MASTER CLOSET 1
 		10ft.
 		6ft. 6in.
 		13ft. 6in.
MASTER CLOSET 2
 		10ft.
 		5ft.
 		8ft. 11in.
BEDROOM 3
 		8ft. 8in.
 		17ft.
 		11ft. 8in.
BEDROOM 4
 		8ft. 8in.
 		12ft.
 		11ft. 4in.
BEDROOM 5
 		8ft. 8in.
 		15ft. 2in.
 		11ft.
RECREATION ROOM
 		8ft. 8in.
 		25ft. 4in.
 		16ft. 8in.
GARAGE
 		11ft.
 		34ft. 10in.
 		23ft. 4in.
Garage FRONT ENTRY Square Feet: 818
 		Stalls: 3

  • Traditional house plan
  • Kitchen island
  • Suitable for a walk-out lot
  • Walk-in pantry
  • Library
  • Hobby Room
  • Recreational Room
  • Covered porch

    • This house plan may not be available in your area.
     This house plan was designed based on the building codes applicable in the year of its design.
