Plan Number: 08-038-01

Plan Type: 1.5 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets)   $2,295.00
Extra Sets   $50.00
Builder Sales Flyer (example)   $150.00
PDF's   $2,295.00
CAD Drawings   $3,495.00

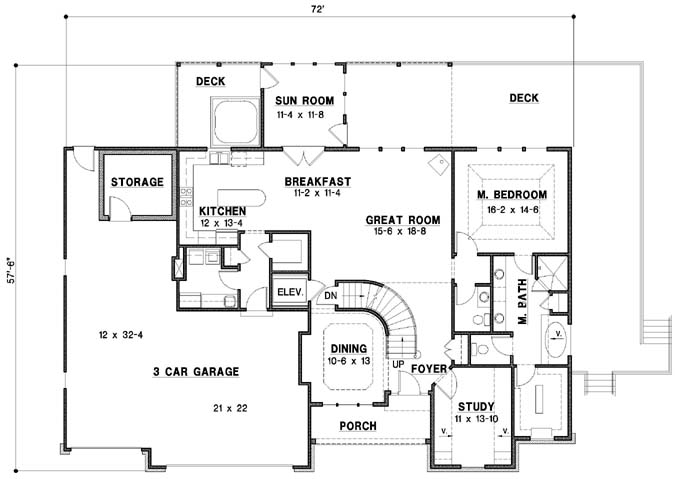

FIRST FLOOR: Square Feet: 2090

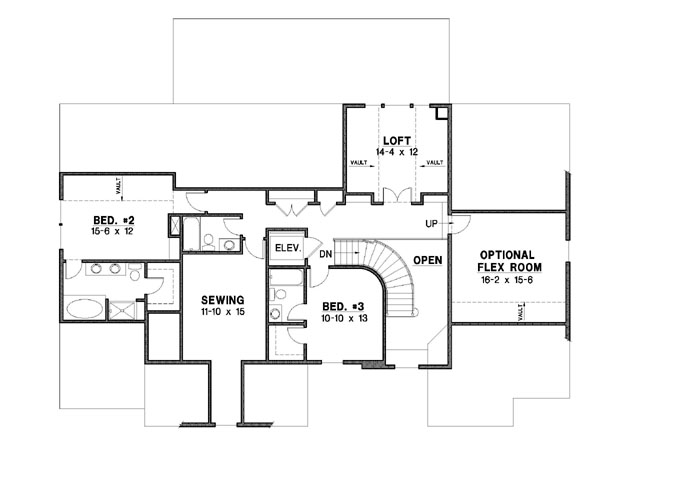

SECOND FLOOR: Square Feet: 1372

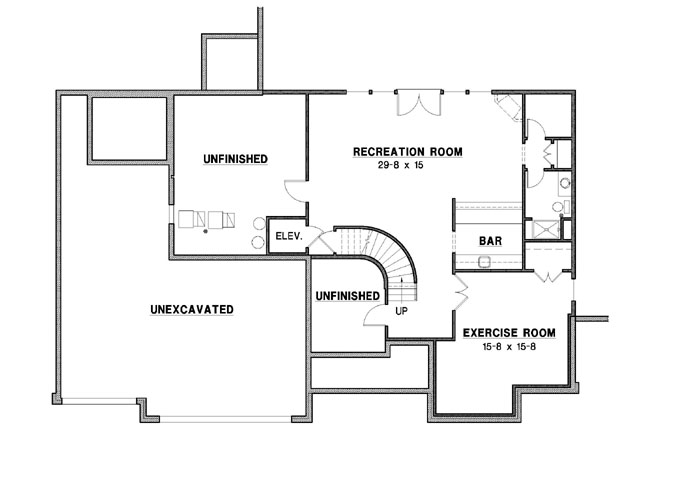

LOWER FLOOR: Square Feet: 1337


Plan Details
Square Feet:4799
Height:30ft. 7in.
Width:72ft.
Depth:57ft. 6in.
Main Roof Pitch:10/12
Basement Wall Height:9ft. 4in.
Master Bedroom Location:FIRST FLOOR
Laundry Location:FIRST FLOOR
Foyer Height:TWO STORY
Bedrooms:3 - 4
Full Bathrooms:5
Half Bathrooms:1
Stairs:1
Materials
Foundation:WALK OUT
Exterior Walls:2 x 6
Front Exterior Finish:LAP / STONE
Side and Rear Exterior Finish:SMART PANEL
Roof Framing:LUMBER
Windows:DOUBLE HUNG
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		19ft. 2in.
 		9ft.
 		15ft. 4in.
DINING ROOM
 		10ft.
 		10ft. 6in.
 		13ft.
KITCHEN
 		10ft.
 		12ft.
 		13ft. 4in.
BREAKFAST
 		10ft.
 		11ft. 2in.
 		11ft. 4in.
SUN ROOM
 		10ft.
 		11ft. 4in.
 		11ft. 8in.
GREAT ROOM
 		10ft.
 		15ft. 6in.
 		18ft. 8in.
STUDY
 		11ft. 4in.
 		11ft.
 		13ft. 10in.
MASTER BEDROOM
 		11ft.
 		16ft. 2in.
 		14ft. 6in.
MASTER CLOSET
 		9ft.
 		7ft. 8in.
 		9ft. 10in.
LAUNDRY ROOM
 		10ft.
 		8ft. 4in.
 		8ft. 8in.
BEDROOM 2
 		10ft.
 		15ft. 6in.
 		12ft.
BEDROOM 3
 		8ft.
 		10ft. 10in.
 		13ft.
SEWING
 		8ft.
 		11ft. 10in.
 		15ft.
EXERCISE ROOM
 		9ft.
 		15ft. 6in.
 		15ft. 6in.
RECREATION ROOM
 		9ft.
 		29ft. 8in.
 		15ft.
GARAGE
 		11ft.
 		21ft.
 		22ft.
Garage FRONT ENTRY Square Feet: 994
 		Stalls: 3

  • Suitable for a walk-out lot
  • Suitable for a view lot
  • Circular staircase
  • Vaulted / volume / dramatic ceilings
  • Study / office / computer room
  • Formal dining room
  • Elevator
  • Main floor master
  • Oversized master closet
  • Walk-in pantry
  • Eating bar
  • Screened porch / sunroom
  • Large porch
  • Main floor laundry
  • Flex room
  • Loft / balcony
  • 2 master suites
  • Gym / exercise room
  • Unfinished/future space
  • Oversized garage (3+)
  • Traditional house plan
  • 4 bedroom home plan

    • This house plan may not be available in your area.
     This house plan was designed based on the building codes applicable in the year of its design.
