Plan Number: 08-030-01

Plan Type: 2 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets)   $1,695.00
Extra Sets   $50.00
Builder Sales Flyer (example)   $150.00
PDF's   $1,695.00
CAD Drawings   $2,495.00

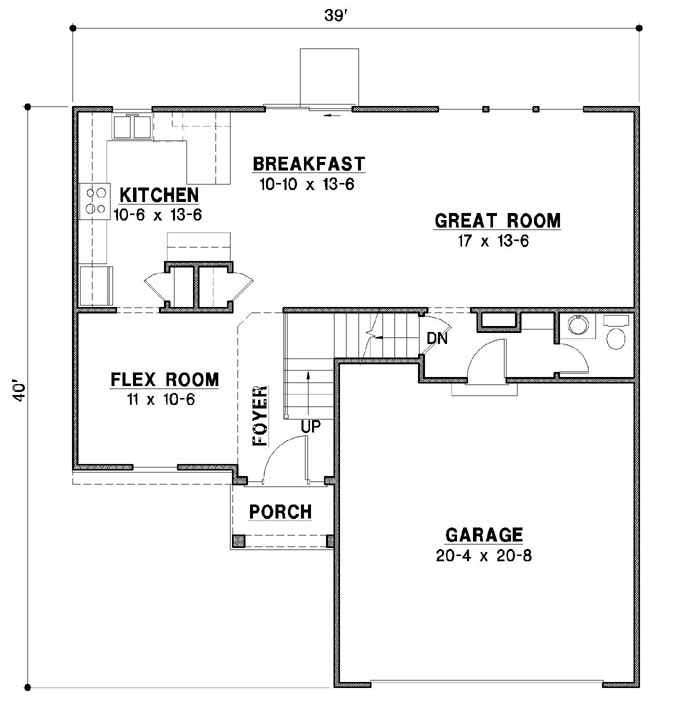

FIRST FLOOR: Square Feet: 850

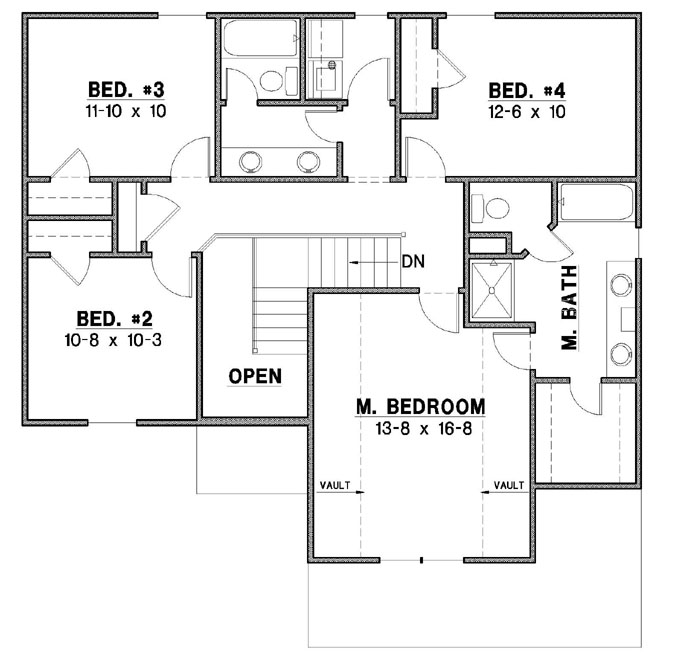

SECOND FLOOR: Square Feet: 1065


Plan Details
Square Feet:1915
Height:28ft. 4in.
Width:39ft.
Depth:40ft.
Main Roof Pitch:10/12
Basement Wall Height:8ft.
Master Bedroom Location:SECOND FLOOR
Laundry Location:SECOND FLOOR
Foyer Height:TWO STORY
Bedrooms:4
Full Bathrooms:2
Half Bathrooms:1
Stairs:1
Materials
Foundation:FULL
Exterior Walls:2 x 4
Front Exterior Finish:VINYL SIDING
Side and Rear Exterior Finish:VINYL SIDING
Roof Framing:TRUSS
Windows:SINGLE HUNG
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		17ft. 2in.
 		6ft. 8in.
 		12ft. 4in.
KITCHEN
 		8ft.
 		10ft. 6in.
 		13ft. 6in.
BREAKFAST
 		8ft.
 		10ft. 10in.
 		13ft. 6in.
GREAT ROOM
 		8ft.
 		17ft.
 		13ft. 6in.
FLEX ROOM
 		8ft.
 		11ft.
 		10ft. 6in.
MASTER BEDROOM
 		10ft.
 		13ft. 8in.
 		16ft. 8in.
MASTER CLOSET
 		8ft.
 		6ft. 4in.
 		6ft. 4in.
LAUNDRY ROOM
 		8ft.
 		5ft. 8in.
 		5ft. 2in.
BEDROOM 2
 		8ft.
 		10ft. 8in.
 		10ft. 3in.
BEDROOM 3
 		8ft.
 		11ft. 10in.
 		10ft.
BEDROOM 4
 		8ft.
 		12ft. 6in.
 		10ft.
GARAGE
 		9ft.
 		20ft. 4in.
 		20ft. 8in.
Garage FRONT ENTRY Square Feet: 447
 		Stalls: 2

  • Traditional house plan
  • Narrow lot house plan
  • 4 bedroom home plan
  • Vaulted / volume / dramatic ceilings
  • Flex room
  • Great room
  • Upstairs laundry

    • This house plan may not be available in your area.
     This house plan was designed based on the building codes applicable in the year of its design.
