Plan Number: 08-029-01

Plan Type: RANCH HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets)   $1,695.00
Extra Sets   $50.00
Builder Sales Flyer (example)   $150.00
PDF's   $1,695.00
CAD Drawings   $2,495.00

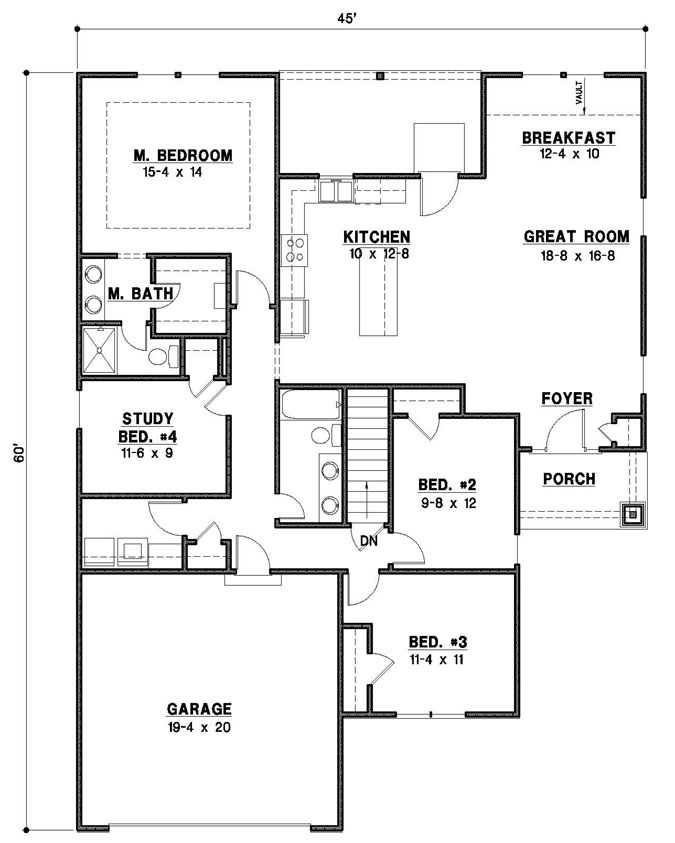

FIRST FLOOR: Square Feet: 1687


Plan Details
Square Feet:1687
Height:21ft. 9in.
Width:45ft.
Depth:60ft.
Main Roof Pitch:8/12
Basement Wall Height:8ft.
Master Bedroom Location:FIRST FLOOR
Laundry Location:FIRST FLOOR
Foyer Height:ONE STORY
Bedrooms:3 - 4
Full Bathrooms:2
Half Bathrooms:0
Stairs:1
Materials
Foundation:FULL
Exterior Walls:2 x 4
Front Exterior Finish:VINYL SIDING
Side and Rear Exterior Finish:VINYL SIDING
Roof Framing:TRUSS
Windows:SINGLE HUNG
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		10ft.
 		7ft. 4in.
 		3ft.
KITCHEN
 		10ft.
 		10ft.
 		12ft. 8in.
DINING ROOM
 		10ft.
 		12ft. 4in.
 		10ft.
GREAT ROOM
 		10ft.
 		18ft. 8in.
 		16ft. 8in.
BEDROOM 4/STUDY
 		8ft.
 		11ft. 6in.
 		9ft.
MASTER BEDROOM
 		9ft.
 		15ft. 4in.
 		14ft.
MASTER CLOSET
 		8ft.
 		5ft. 10in.
 		7ft.
LAUNDRY ROOM
 		8ft.
 		8ft.
 		5ft. 8in.
BEDROOM 2
 		8ft.
 		9ft. 8in.
 		12ft.
BEDROOM 3
 		8ft.
 		11ft. 4in.
 		11ft.
GARAGE
 		9ft.
 		19ft. 4in.
 		20ft.
Garage FRONT ENTRY Square Feet: 423
 		Stalls: 2

  • Cottage house plan
  • Great room
  • Open floor plan
  • 4 bedroom home plan
  • Nook / breakfast area
  • Eating bar

    • This house plan may not be available in your area.
