Plan Number: 08-028-01

Plan Type: RANCH HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets) $1,695.00
Extra Sets $50.00
Builder Sales Flyer (example) $150.00
PDF's $1,695.00
CAD Drawings $2,495.00

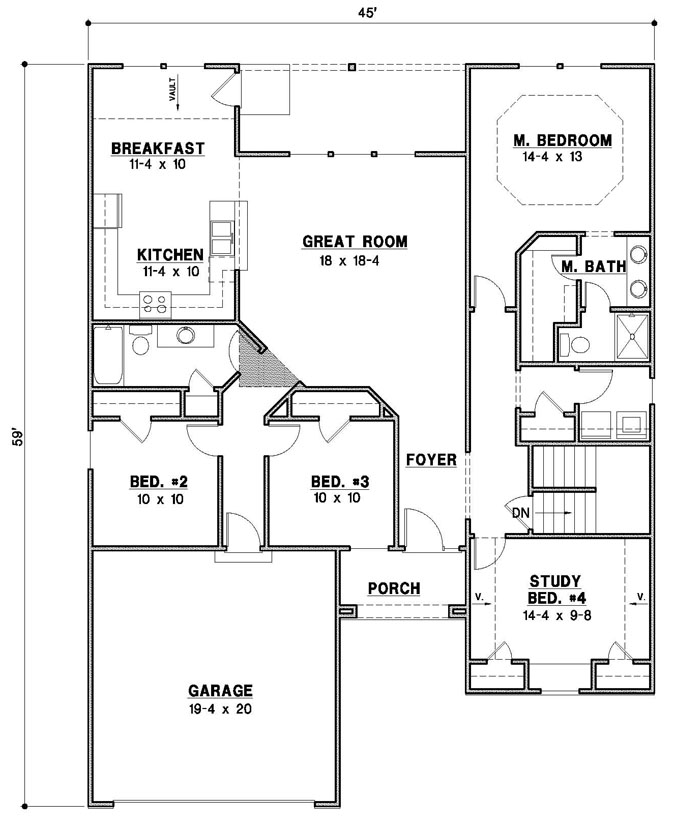

FIRST FLOOR: Square Feet: 1716


Plan Details
Square Feet:1716
Height:22ft. 3in.
Width:45ft.
Depth:59ft.
Main Roof Pitch:6/12
Basement Wall Height:8ft.
Master Bedroom Location:FIRST FLOOR
Laundry Location:FIRST FLOOR
Foyer Height:ONE STORY
Bedrooms:3 - 4
Full Bathrooms:2
Half Bathrooms:0
Stairs:1
Materials
Foundation:FULL
Exterior Walls:2 x 4
Front Exterior Finish:VINYL SIDING
Side and Rear Exterior Finish:VINYL SIDING
Roof Framing:TRUSS
Windows:SINGLE HUNG
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		11ft.
 		5ft. 4in.
 		10ft. 4in.
KITCHEN
 		10ft.
 		11ft. 4in.
 		10ft.
BREAKFAST
 		10ft.
 		11ft. 4in.
 		10ft.
GREAT ROOM
 		11ft.
 		18ft.
 		18ft. 4in.
BEDROOM 4/STUDY
 		10ft.
 		14ft. 4in.
 		9ft. 8in.
MASTER BEDROOM
 		9ft.
 		14ft. 4in.
 		13ft.
MASTER CLOSET
 		8ft.
 		4ft. 6in.
 		10ft.
LAUNDRY ROOM
 		8ft.
 		6ft.
 		6ft.
BEDROOM 2
 		8ft.
 		10ft.
 		10ft.
BEDROOM 3
 		8ft.
 		10ft.
 		10ft.
GARAGE
 		9ft.
 		19ft. 4in.
 		20ft.
Garage FRONT ENTRY Square Feet: 407
 		Stalls: 2

  • Cottage house plan
  • 4 bedroom home plan
  • Vaulted / volume / dramatic ceilings
  • Great room
  • Nook / breakfast area
  • Main floor laundry

    • This house plan may not be available in your area.
