Plan Number: 08-021-02

Plan Type: 2 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets)   $1,995.00
Extra Sets   $50.00
Builder Sales Flyer (example)   $150.00
PDF's   $1,995.00
CAD Drawings   $2,895.00

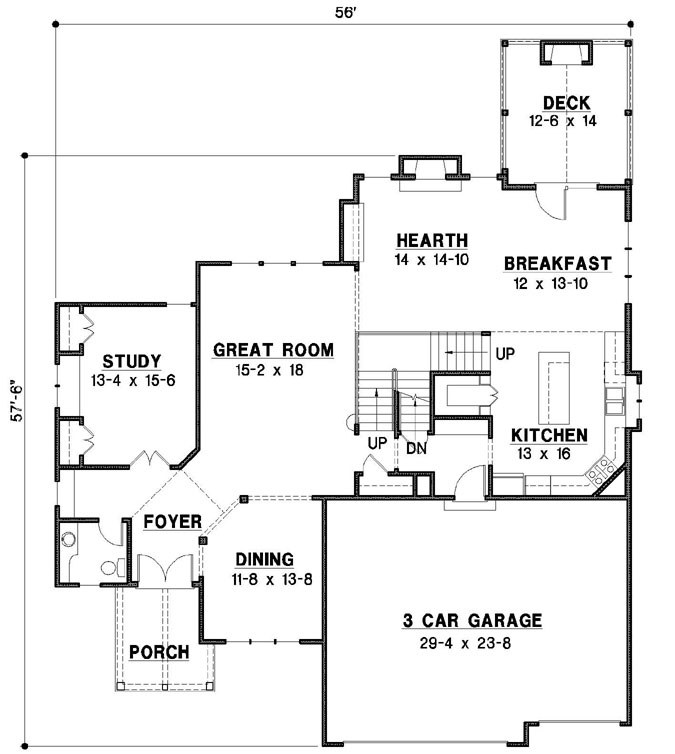

FIRST FLOOR: Square Feet: 1760

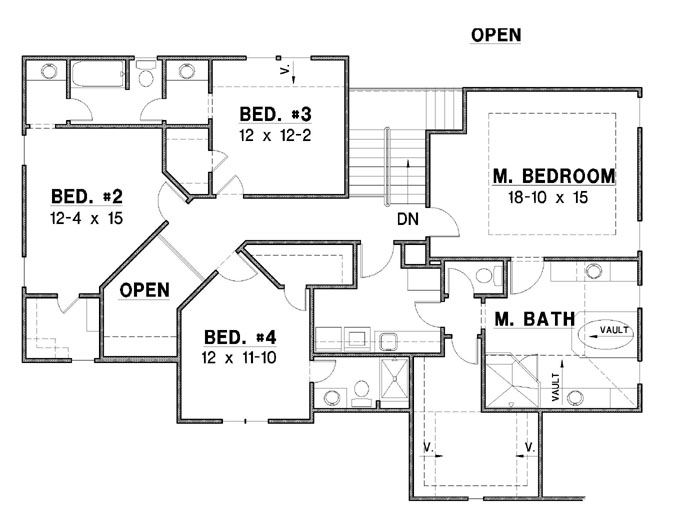

SECOND FLOOR: Square Feet: 1619


Plan Details
Square Feet:3379
Height:33ft. 3in.
Width:56ft.
Depth:57ft. 6in.
Main Roof Pitch:10/12
Basement Wall Height:9ft.
Master Bedroom Location:SECOND FLOOR
Laundry Location:SECOND FLOOR
Foyer Height:TWO STORY
Bedrooms:4 - 5
Full Bathrooms:4
Half Bathrooms:0
Stairs:1
Materials
Foundation:FULL
Exterior Walls:2 x 4
Front Exterior Finish:STUCCO
Side and Rear Exterior Finish:SMART PANEL
Roof Framing:LUMBER
Windows:CASEMENT/DOUBLE HUNG
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		18ft. 2in.
 		6ft. 8in.
 		11ft. 2in.
DINING ROOM
 		10ft.
 		11ft. 8in.
 		13ft. 8in.
KITCHEN
 		10ft.
 		13ft.
 		16ft.
BREAKFAST
 		14ft.
 		12ft.
 		13ft. 10in.
HEARTH
 		14ft.
 		14ft.
 		14ft. 10in.
GREAT ROOM
 		10ft.
 		15ft. 2in.
 		18ft.
STUDY
 		10ft.
 		13ft. 4in.
 		15ft. 6in.
MASTER BEDROOM
 		9ft.
 		18ft. 10in.
 		15ft.
MASTER CLOSET
 		8ft.
 		11ft. 4in.
 		12ft. 8in.
LAUNDRY ROOM
 		8ft.
 		11ft. 4in.
 		5ft. 10in.
BEDROOM 2
 		8ft.
 		12ft. 4in.
 		15ft.
BEDROOM 3
 		9ft.
 		12ft.
 		12ft. 2in.
BEDROOM 4
 		9ft.
 		12ft.
 		11ft. 10in.
GARAGE
 		11ft.
 		29ft. 4in.
 		23ft. 8in.
Garage FRONT ENTRY Square Feet: 695
 		Stalls: 3

  • Study
  • Upstairs laundry
  • Kitchen island
  • Formal dining room
  • Teen suite/Jack & Jill bath
  • Vaulted / volume / dramatic ceilings
  • Oversized master closet
  • Master custom shower
  • Southern house plan
  • 4 bedroom home plan

    • This house plan may not be available in your area.
     This house plan was designed based on the building codes applicable in the year of its design.
