Plan Number: 08-021-01

Plan Type: 2 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets)   $1,995.00
Extra Sets   $50.00
Builder Sales Flyer (example)   $150.00
PDF's   $1,995.00
CAD Drawings   $2,895.00

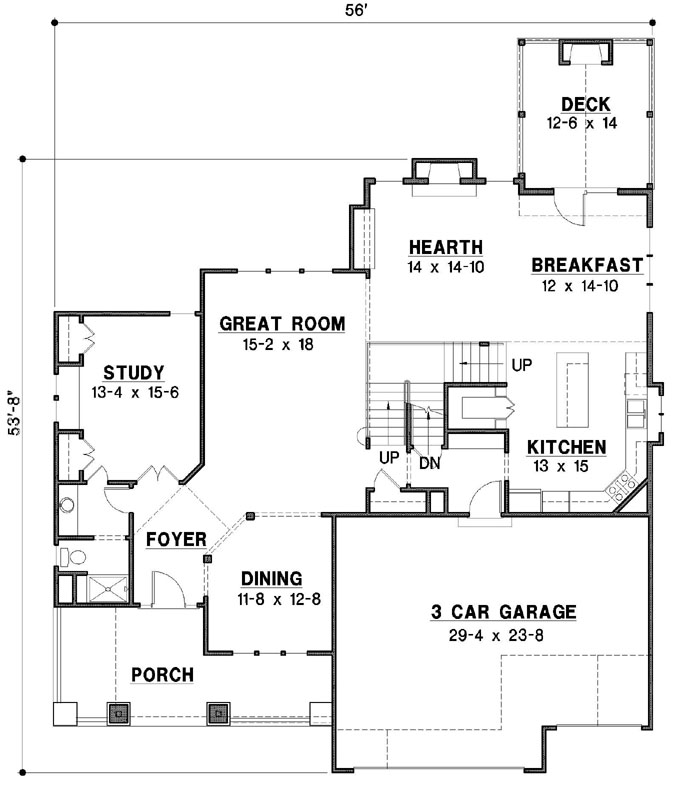

FIRST FLOOR: Square Feet: 1748

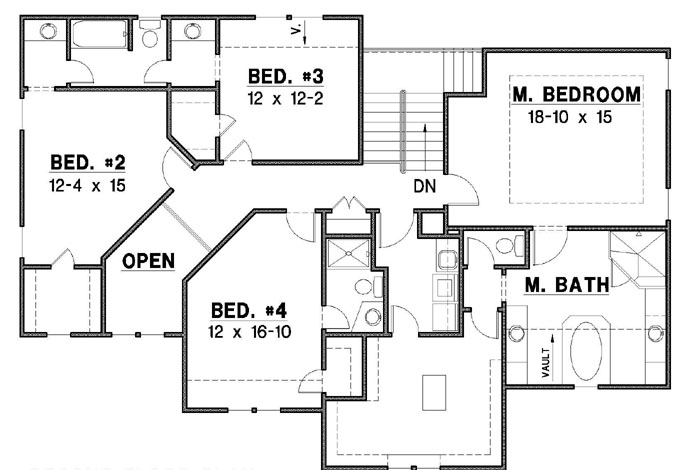

SECOND FLOOR: Square Feet: 1646



Plan Details
Square Feet:3394
Height:26ft. 4in.
Width:56ft.
Depth:57ft. 6in.
Main Roof Pitch:5/12
Basement Wall Height:9ft.
Master Bedroom Location:SECOND FLOOR
Laundry Location:SECOND FLOOR
Foyer Height:TWO STORY
Bedrooms:5
Full Bathrooms:4
Half Bathrooms:0
Stairs:1
Materials
Foundation:FULL
Exterior Walls:2 x 4
Front Exterior Finish:SHAKE/STONE
Side and Rear Exterior Finish:SMART PANEL
Roof Framing:TRUSS
Windows:DOUBLE HUNG
Shingles:COMPOSITION

Room Height Width Depth
FOYER
18ft. 2in.
6ft. 8in.
11ft. 2in.
DINING ROOM
10ft.
11ft. 8in.
12ft. 8in.
KITCHEN
10ft.
13ft.
15ft.
BREAKFAST
14ft.
12ft.
14ft. 10in.
HEARTH
14ft.
14ft.
14ft. 10in.
GREAT ROOM
10ft.
15ft. 2in.
18ft.
STUDY
10ft.
13ft. 4in.
15ft. 6in.
MASTER BEDROOM
9ft.
18ft. 10in.
15ft.
MASTER CLOSET
8ft.
15ft. 2in.
11ft. 2in.
LAUNDRY ROOM
8ft.
6ft. 2in.
8ft. 2in.
BEDROOM 2
8ft.
12ft. 4in.
15ft.
BEDROOM 3
9ft.
12ft.
12ft. 2in.
BEDROOM 4
12ft.
16ft. 10in.
GARAGE
11ft.
29ft. 4in.
23ft. 8in.
Garage FRONT ENTRY Square Feet: 676
Stalls: 3

  • Vaulted / volume / dramatic ceilings
  • Study
  • Large porch
  • Formal dining room
  • Oversized garage (3+)
  • Upstairs laundry
  • Teen suite/Jack & Jill bath
  • Oversized master closet
  • Craftsman style house plan
  • 4 bedroom home plan

  • This house plan may not be available in your area.
    This house plan was designed based on the building codes applicable in the year of its design.
