Plan Number: 08-003-02

Plan Type: 1.5 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets) $1,895.00
Extra Sets $50.00
Builder Sales Flyer (example) $150.00
PDF's $1,895.00
CAD Drawings $2,795.00

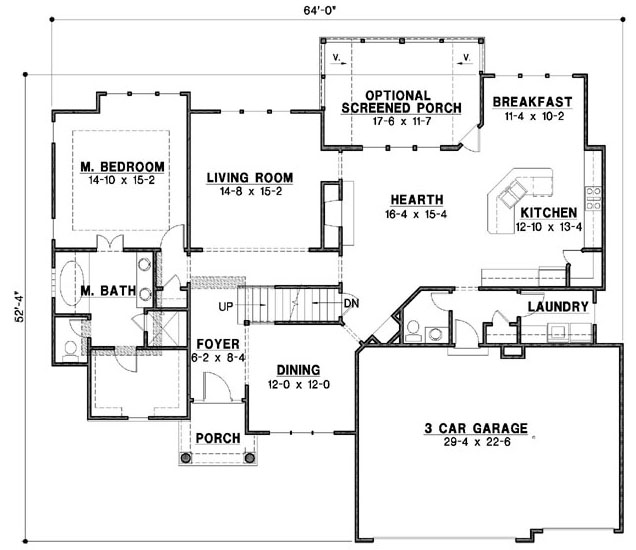

FIRST FLOOR: Square Feet: 1896

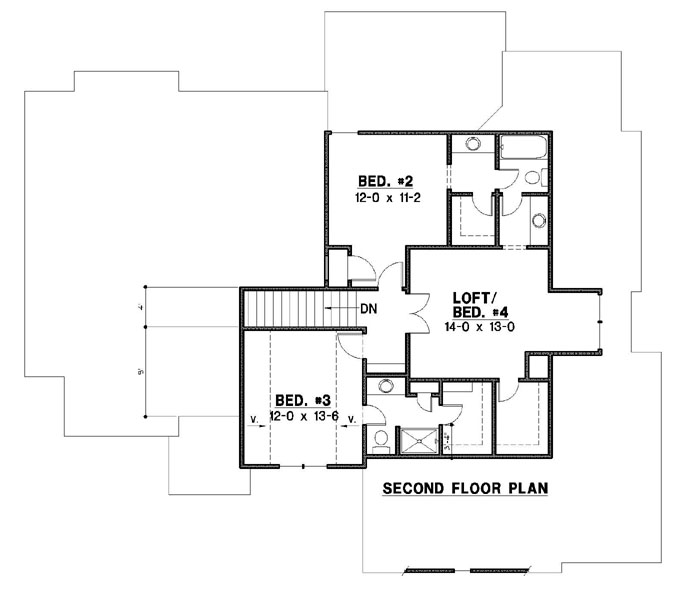

SECOND FLOOR: Square Feet: 896


Plan Details
Square Feet:2869
Height:25ft. 11in.
Width:64ft.
Depth:53ft. 4in.
Main Roof Pitch:8/12
Basement Wall Height:9ft.
Master Bedroom Location:FIRST FLOOR
Laundry Location:FIRST FLOOR
Foyer Height:ONE STORY
Bedrooms:3 - 4
Full Bathrooms:3
Half Bathrooms:1
Stairs:1
Materials
Foundation:FULL
Exterior Walls:2 x 4
Front Exterior Finish:STUCCO/FAUX STONE
Side and Rear Exterior Finish:SMART PANEL
Roof Framing:LUMBER
Windows:CASEMENT
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		12ft.
 		6ft. 2in.
 		8ft. 4in.
LIVING ROOM
 		10ft. 2in.
 		14ft. 8in.
 		15ft. 2in.
DINING ROOM
 		9ft.
 		12ft.
 		12ft.
KITCHEN
 		9ft.
 		12ft. 10in.
 		13ft. 4in.
BREAKFAST
 		9ft.
 		11ft. 4in.
 		10ft. 2in.
HEARTH
 		9ft.
 		16ft. 4in.
 		15ft. 4in.
MASTER BEDROOM
 		10ft.
 		14ft. 10in.
 		15ft. 2in.
MASTER CLOSET
 		9ft.
 		10ft. 10in.
 		7ft. 6in.
LAUNDRY ROOM
 		9ft.
 		8ft. 2in.
 		6ft.
BEDROOM 2
 		8ft.
 		12ft.
 		11ft. 2in.
BEDROOM 3
 		10ft.
 		12ft.
 		13ft. 6in.
BEDROOM 4/LOFT
 		8ft.
 		14ft.
 		13ft.
GARAGE
 		10ft.
 		29ft. 4in.
 		22ft. 6in.
Garage FRONT ENTRY Square Feet: 642
 		Stalls: 3

  • Open floor plan
  • Formal dining room
  • Main floor master
  • Screened porch / sunroom
  • Kitchen island
  • Loft / balcony
  • Oversized garage (3+)
  • 4 bedroom home plan
  • Traditional house plan

    • This house plan may not be available in your area.
     This house plan was designed based on the building codes applicable in the year of its design.
