Plan Number: 05-111-04

Plan Type: REVERSE 1.5 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets) $1,995.00
Extra Sets $50.00
Builder Sales Flyer (example) $150.00
PDF's $1,995.00
CAD Drawings $2,895.00

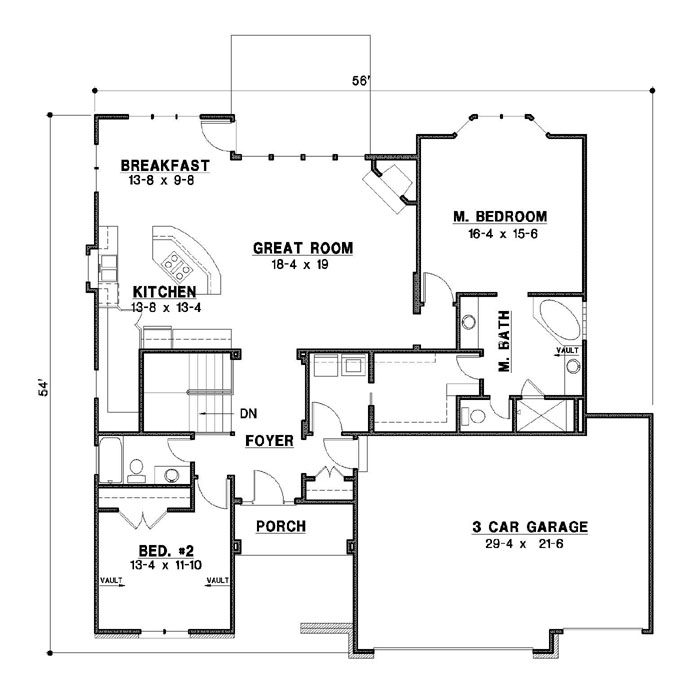

FIRST FLOOR: Square Feet: 1786

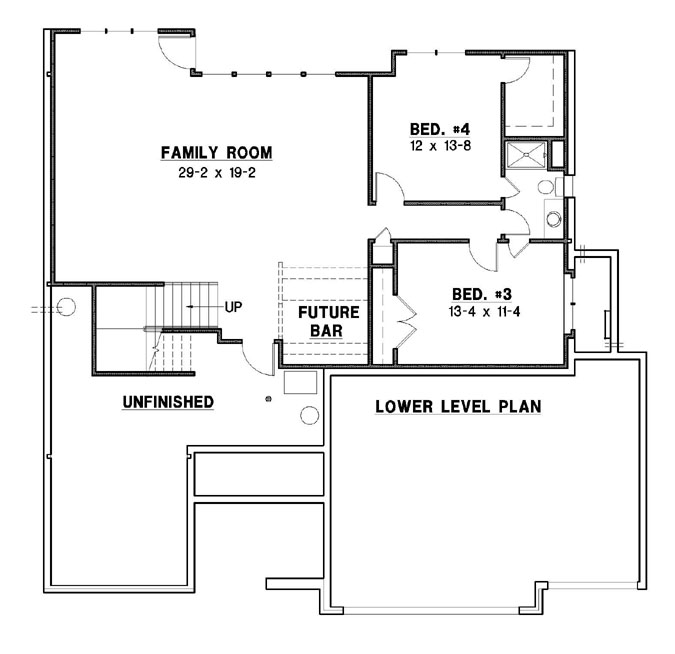

LOWER LEVEL: Square Feet: 1361


Plan Details
Square Feet:3147
Height:27ft. 9in.
Width:56ft.
Depth:54ft.
Main Roof Pitch:9/12
Basement Wall Height:9ft.
Master Bedroom Location:FIRST FLOOR
Laundry Location:FIRST FLOOR
Foyer Height:ONE STORY
Bedrooms:4
Full Bathrooms:3
Half Bathrooms:0
Stairs:1
Materials
Foundation:WALK OUT
Exterior Walls:2 x 4
Front Exterior Finish:STONE/STUCCO
Side and Rear Exterior Finish:SMART PANEL
Roof Framing:LUMBER
Windows:CASEMENT
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		12ft.
 		6ft. 10in.
 		14ft.
KITCHEN
 		9ft.
 		13ft. 8in.
 		13ft. 4in.
BREAKFAST
 		10ft.
 		13ft. 8in.
 		9ft. 8in.
GREAT ROOM
 		12ft.
 		18ft. 4in.
 		19ft.
BEDROOM 2
 		12ft.
 		13ft. 4in.
 		11ft. 10in.
MASTER BEDROOM
 		10ft.
 		16ft. 4in.
 		15ft. 6in.
MASTER CLOSET
 		9ft.
 		10ft. 8in.
 		8ft.
LAUNDRY ROOM
 		9ft.
 		6ft.
 		8ft.
BEDROOM 3
 		8ft. 8in.
 		13ft. 4in.
 		11ft. 4in.
BEDROOM 4
 		8ft. 8in.
 		12ft.
 		13ft. 8in.
FAMILY ROOM
 		8ft. 8in.
 		29ft. 2in.
 		19ft. 2in.
GARAGE
 		10ft.
 		29ft. 4in.
 		21ft. 6in.
Garage FRONT ENTRY Square Feet: 647
 		Stalls: 3

  • Bungalow house plan

    • This house plan may not be available in your area.
     This house plan was designed based on the building codes applicable in the year of its design.
